1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter

Place of Origin : Hubei, China

Price : $2,645.00/sets 1-2 sets

MOQ : 1set

Condition : New

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction works , Other, Advertising Company, All Other Fileds Need Cut Cutting or Printing

Weight (KG) : 300

Showroom Location : Turkey, Viet Nam, Bangladesh, Cambodia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Motor, Mother Board and Drivers

Warranty : 1 Year, 1 Year Warranty for Full Machine

Product Name : Pen Drawing Paper Pattern Cutter 200-500g Paper Board Cutter Plotter

Cutting Machine Frame and Case : Blue Frame+Silver Case

Machine Material : All Aluminum Countertops

Cutting Materials : White Paper, Kraft, Plastic Board, Fiberboard, etc

Cut Tools : Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade

Cutting Scope : 1200*900mm

Cutting Thickness : ≤3mm

Cutting Speed : 1200mm/s

Cutting Machine Size : 1600*1280*750mm

Applicable Fields or Industries : Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes

Contact Now

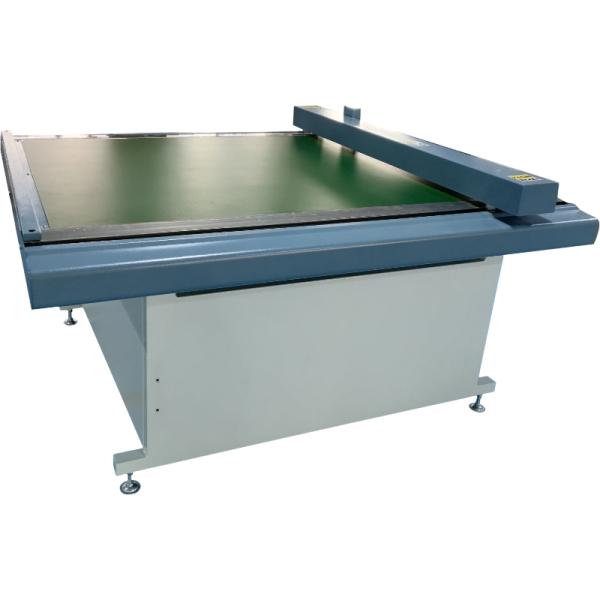

1200x900mm Pen Drawing Paper Pattern Cutter For 200-500g Paper Board
Product Overview
Updated 1510 Pen Drawing Paper Pattern Cutter designed for cutting 200-500g paper board with precision and efficiency.
Technical Specifications
Model GM-1209B3 GM-1509B3 GM-1510B3 GM-1512B3
Cutting Window (Fabric Scope) 1200*900mm 1500*900mm 1500*1000mm 1500*1200mm
Overall Dimension (mm) 1600*1280*750 1900*1280*750 1900*1380*800 1900*1580*800
Cutting Speed 1200mm/s
Cutting Thickness 2mm
Cutting Materials White Paper, Kraft, Plastic Board, Fiberboard, etc
Repeatability Precision ≤0.01mm
Communication Port USB/RJ45 Ethernet; Shared Folder Print in LAN
Buffer Memory Size 1M/8M/32M (Can buffer more than 1 page)
File Formats HPGL (Compatible with Domestic and International CAD Online)
Control Panel 9 Keys and LED Display
Motor/Driver High Performance 3 Phase Step-motor
Supply Voltage AC 220V/110V±10%, 50Hz/3.5KW
Working Environment Temperature: -30~50℃ or -22~122℉; Humidity: 10%--95% RH
Fasten Vacuum Adsorption
Paper Thickness 150g-500g/㎡
Application Areas Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc
Main Features
  • New Frame Design Ensures Machine Stability When Running at High Speed
  • Optimized Circuit Layout; More Compact Electrical; Better Heat Dissipation; More Reasonable
  • Cutting Starting Points and Cutting Sequence Display System
  • System Updated to the Latest Version. Optimized Dashed Lines, Arcs, Machine Runs More Smoothly
  • Unique Error Data Identification Function
Product Images
1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter
Manufacturer Information
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company focusing on the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.
1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry.
Packaging & Delivery
1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter
Exhibition & Trade Shows
1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter
Certifications
1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter 1200x900mm Pen Drawing Cutter for 200-500g Paper Board with 1200mm/s Cutting Speed Flatbed Cutting Plotter
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
